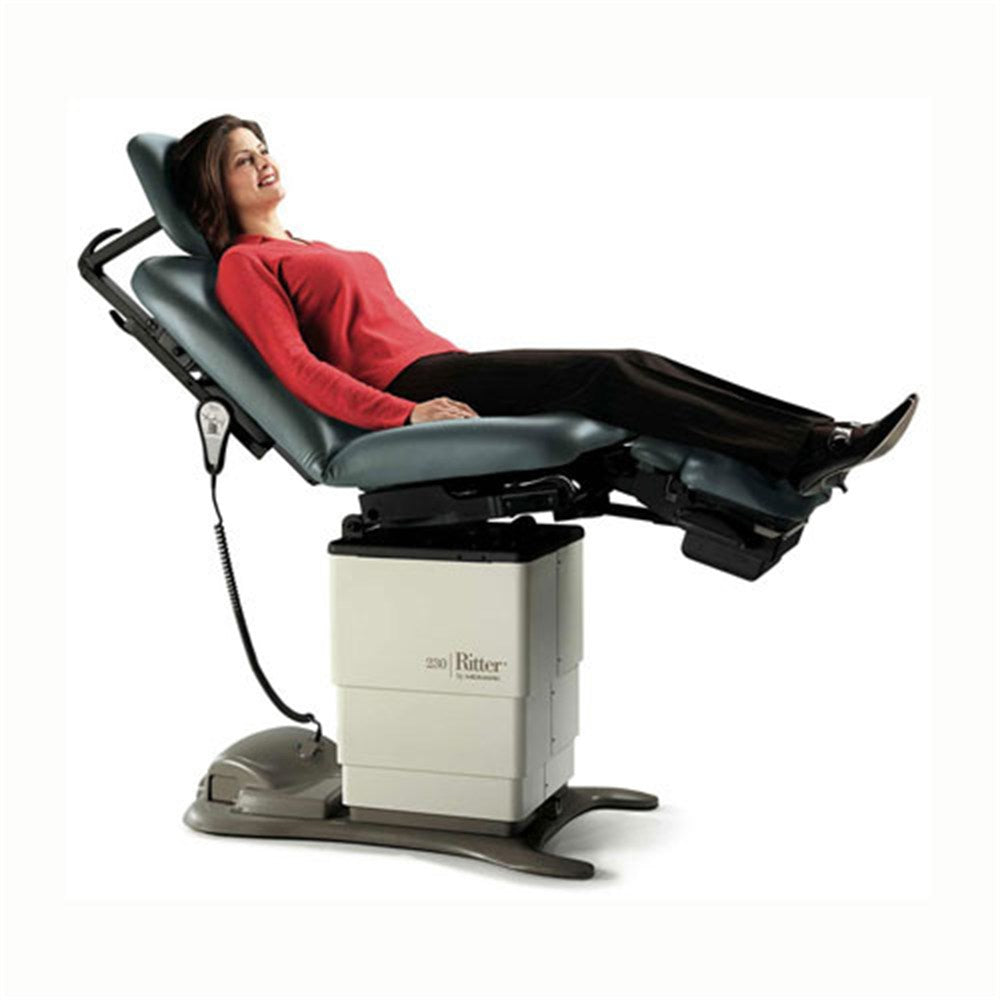

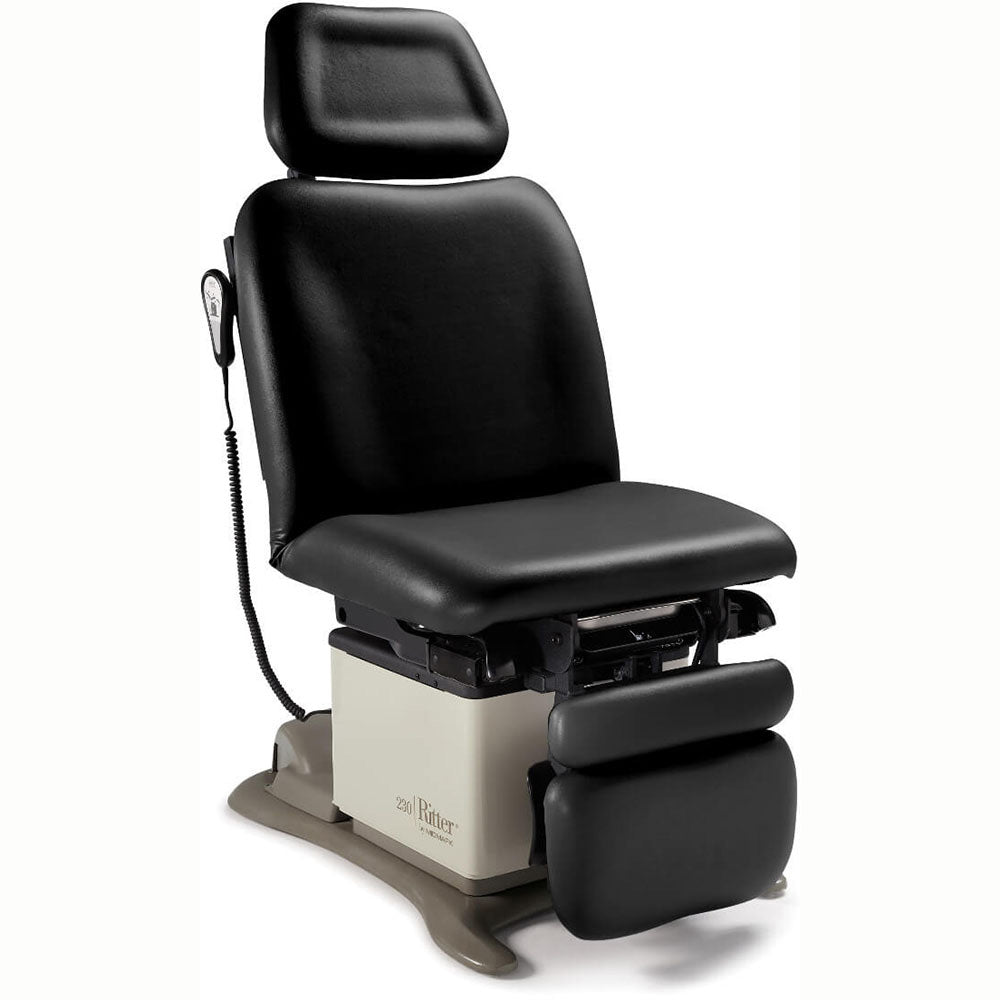

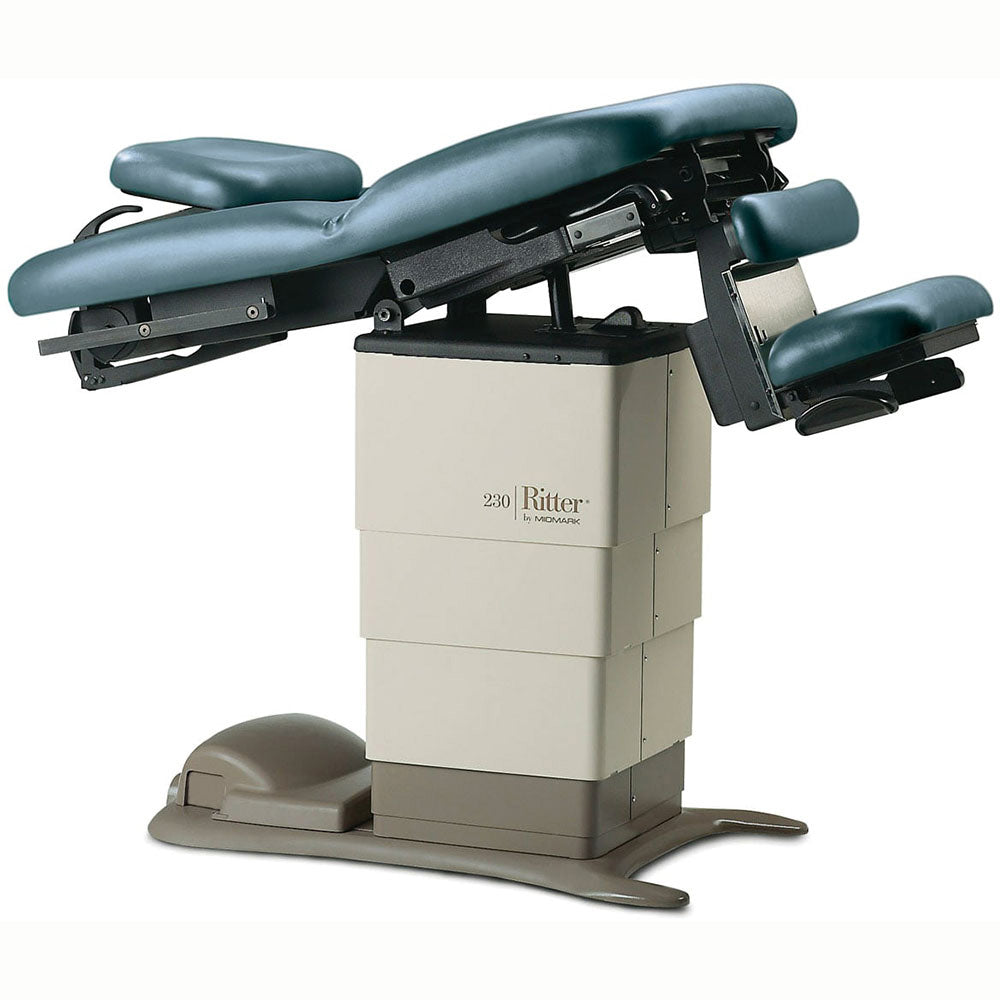

RITTER 230-002 Universal Power Procedures Chair Base with Receptacle. MPN: 230-002

RITTER 230-002 Universal Power Procedures Chair Base with Receptacle. MPN: 230-002

Sometimes positioning patients can be a difficult task when dealing with the less mobile, elderly, and special needs patients. The Ritter 230 Power Procedures Chair, with its low height and multi-positioning capabilities, improves office efficiency by allowing you and your staff to easily position patients with the touch of a button; reducing the likelihood of fatigue, back and neck strain, and workplace injury.

An easy-to-use foot control powers your patient effortlessly to the desired position, and in addition to a modern look, provides maximum protection against ingress of fluids.

The Ritter 230 Universal Power Procedures Chair with power height, back, foot and tilt, allows you to effortlessly and precisely position patients for a multitude of procedures.

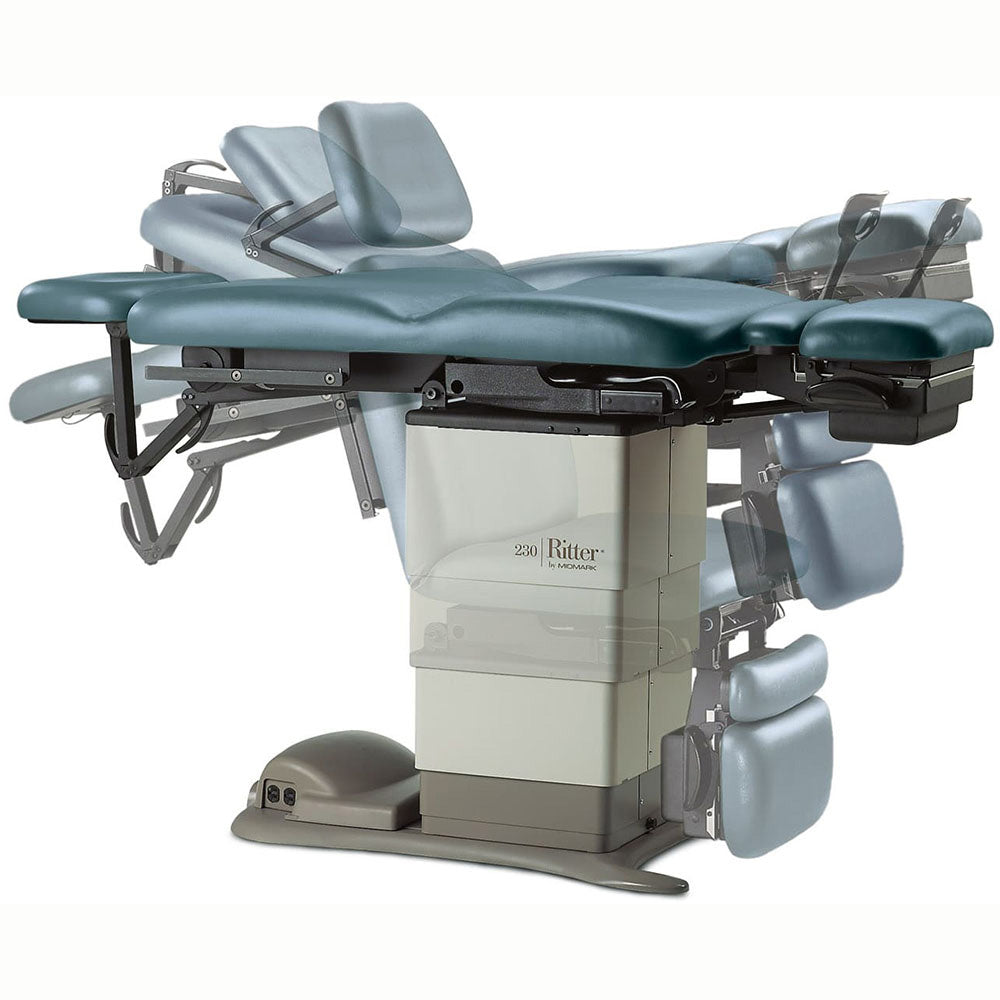

The Ritter 230 satisfies all of your positioning needs:

• Knee-Chest: The foot support can be easily reconfigured, and the table properly positioned, to set up the knee-chest position for colon and rectal examinations and procedures.
• Lithotomy: Extending the stirrups and treatment pan, lowering the foot support, and slightly tilting the table, provide the perfect lithotomy position for OB/GYN examinations and procedures.
• Trendelenburg: Whether better positioning the patient, treating for shock or faintness, or increasing anesthesia onset, the Trendelenburg position offers a full 30 degree of tilt.
• Flat: The table supports examinations and procedures requiring supine, prone, left lateral, or right lateral positioning, when in the flat position.
• Low Entry: With the increasing number of elderly and disabled patients, the low entry position makes it easy and safe for the patient to get onto and off the table.

Specifications:

• Patient Load Rating: 450 lb. (204 kg)
• Power height, back, foot and tilt
• Hand control standard
• Table weight: 455 lb
• Height: Min= 22.5" (57.2 cm); Max= 40" (101.6 cm)
• Seat Tilt Angle Range: 0 degree to 30 degree
• Back Support Angle Range: 0 degree to 85 degree
• Foot Support Angle Range: 0 degree to 90 degree
• Upholstery Width Dimensions: Headrest: 18" (45.7 cm); Back support: 27" (68.6 cm); Seat: 27" (68.6 cm) ; Foot support: 18" (45.7 cm)
• Patient Support Surface Length: Flat position: 72" (182.9 cm); Flat position with headrest extended: 83" (210.8)
• Paper Roll Holder Capacity: Holds 18" x 3.5" paper roll (45.7 x 8.9 cm)
• Stainless Steel Treatment Pan Dimensions:11.5" L x 9" W x 2.5" D (29.2 x 22.9 x 6.4 cm)

Upholstery Tops:

• RITTER Seamless Standard Upholstery Top for 230 Procedures Chair. MPN: 002-0824
• RITTER Seamless UltraFree Upholstery Top for 230 Procedures Chair. MPN: 002-10133
